Description

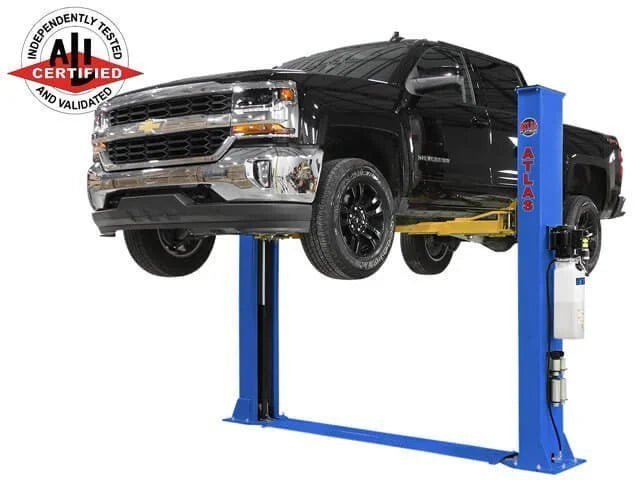

xThe Atlas® Platinum PVL9BP is a 9000 LB capacity, base-plate two-post lift designed for professional service centers. The open-top design of this lift makes it ideal for garages with low ceilings or for customers who don’t want to worry about the limitations of a top beam. The total column height is 111 1/8″ (9′ 3 1/8″). The Atlas® Platinum PVL9BP can lift a range of the most common vehicles on the market, both foreign and domestic, while also having the capacity to handle both full-size pickups and commercial vehicles.
The Atlas® Platinum PVL9BP is ALI Certified and backed by one of the Industry’s best warranties for an added piece of mind.
The Atlas® Platinum PVL9BP features a premium ALLY power unit which is certified by MET Laboratories Inc. for electrical compliance in the United States and Canada. Extra heavy-duty armatures and more motor windings with increased silver metal included in the wires and connections create far less heat generation and allow ALLY Hydraulic power units to maintain constant torque through the lifting process. This power unit also carries an industry leading two-year limited warranty.
- ALI Certified
- 9,000 lb. Capacity
- Commercial Grade
- 3-Stage Symmetric Arms
- Base Plate, Open-Top Design
- Designed For Low Ceiling Clearance – 9′ 3 1/8″ Columns
- Dual Hydraulic Chain-Drive Cylinders
- Secondary Lock System (SLS)
- Automatic Arm Restraints
- Dual Point Lock Release
- Includes Double Screw-Up Adapters
- Free 8 Piece Truck Adapter Set
- Standard with Premium ALLY Powerunit
- Mounting Hardware Included
- Shipping Weight: 1,700 lbs.
- 5 yr Structural – 2 yr Hydraulic – 2 yr Powerunit Warranty
| Atlas® Platinum PVL9BP Specifications | ||
| Capacity | 9,000 LB. | |
| Overall Height | 111 1/8″ (9′ 3 1/8″) | |
| Overall Floor Width | 138 5/8″ (11′ 6 5/8″) | |
| Outside Column to Outside Column | 127 1/2″ (10′ 7 1/2″) | |
| Maximum Lift Height (Without Adapters) | 74 3/4″ | |
| Maximum Lift Height (With Adapters) | 83 3/4″ | |
| Minimum Arm Height | 4 1/2″ | |
| Inside Column | 111 3/8″ (9′ 3 3/8″) | |
| Drive Thru | 97 5/8″ (8′ 1 5/8″) | |
| Column Size | 7 5/8″ x 14 1/4″ | |
| Column Thickness of Steel | 6mm | |
| Base Of Lift | 19 1/2″ x 20 1/2″ | |
| Motor/Electrical Requirement | 220 volt single (1) phase. A 30 amp breaker is recommended | |
| Oil Requirement | 3-5 Gallons AW32/AW46 (NOT INCLUDED) | |
| Shipping Weight | 1,700 LBS. | |
| Adapter Heights | 4 Each 3″, 6″ | |
| Arm Hole/Adapter Peg Size | 2″ | |
| Requires a minimum of 6″ of concrete with a 3000 psi. rating | ||
