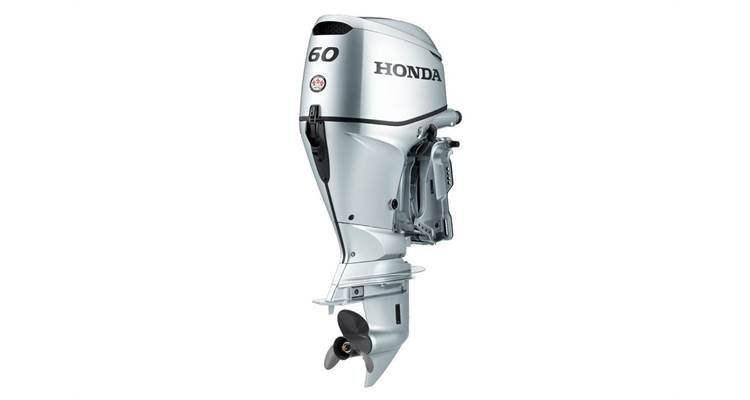

Honda 60AK1LRTC Outboard Motor

Key Features

• Four-Stroke Design: World-renowned Honda quality combines proven reliability and superior fuel efficiency, with no oil mixing.
• Lightweight: Weighing in at only 110 kg (243 lb)(with propeller mounted), the BF60 (LRTC model) is one of the lightest motors in its class. It’s perfect for inflatables, skifs, and fishing boats.
• BLAST® System: Boosted Low Speed Torque, or BLAST®, improves acceleration at low speeds. A quick movement of the throttle control activates the BLAST® system, advancing the ignition curve aggressively. “Hole Shot” is vastly improved as more horsepower gets the hull up on plane quicker.
• Lean Burn Control®: Lean Burn Control® increases fuel efficiency by allowing combustion to operate on a leaner air/fuel mixture. At cruising speed, this engine runs on up to 10% less fuel than others in its class.
• Based on EPA Specific Fuel Consumption Mode.: Variable Speed Trolling
• For fisherman who want to slow troll, Honda’s variable speed control is the right fit. The system adjusts in 50 RPM increments between 750 rpm and 1,000 rpm. Variable speed control is standard on the tiller and remote models.: Programmed Fuel Injection
• Programmed Fuel Injection PGM-FI® delivers the precise amount of fuel/air to each cylinder. The result is easy starts and instant throttle response with superior fuel efficiency.: Mikuni® Intake System
• The lightweight Mikuni® long tube intake track system helps build low end torque.: Engine Alert System
• The Engine Alert System uses visual, audio and rpm reduction circuits to alert the operator of over-heating, low oil PSI and over-revving. This helps to prevent engine damage.: Four-Front Corrosion Protection
• The Corrosion Protection System is a patented “Double Sealed” multi-layered paint process. Sacrificial anodes and stainless steel technology, along with waterproof coectors, internally painted cooling passages, and a freshwater flushing device, all enhance corrosion protection.: Corrosion Tolerance
• A fresh water flusHPort flushes debris and saltwater out of the engine. Painted interior cooling passages help extend the life of the outboard.: Ultra Low 3-Star CARB Emissions
• Environmentally conscious technology. All Honda Marine engines exceed the highest CARB 3-Star rating to meet the rigorous California Air Resource Board’s standards.: Three-Year Warranty
• The best outboards in the industry are backed by the best warranty in the business, 3 years parts and labour.: Superior battery charging
• There’s always plenty of electric power with the 60 HP. Honda’s exclusive neodymium magnet flywheel enables these engines to produce nearly twice as many charging amps as some competitors. The high output helps keep battery banks charged all day, even when ruing multiple accessories. The BF60 : evelops a total 27 amps and 22 charging amps.
• Optional Convenience: An optional tilt limit kit keeps the motor from rubbing against the bottom of a pontoon boat’s sun deck.
• Easy Maintenance: Easy access side-mounted oil filter and oil fillers simplify maintenance, while “screw-type” valve adjusters reduce maintenance costs.
• Meets NMEA 2000 Standards: NMEA 2000 protocols allow engine data to be displayed on NMEA 2000 compliant dashboard electronics, like sonar and GPS.

Engine

• Type: 4-Stroke SOHC; 3 Cylinder / 12 Valves
• Displacement: 61.0 cubic in. / 998 cc
• Bore & Stroke: 2.9 x 3.1 in. (73 mm x 79.5 mm)
• Full Throttle RPM Range: 5,000-6,000 RPM
• Propshaft Rated Horsepower: 60 HP @ 5,500 RPM
• Cooling System: Water Cooled
• Fuel Delivery: Programmed Electronic Fuel Injection (PGM-FI)
• Recommended Fuel: Unleaded Gas. (Min. Pump Octane 86)
• Ignition System: MicroComputer Programmed
• Starting System: Electric
• Exhaust: Through Prop Hub
• Lubrication: Wet Sump
• Recommended Oil: Honda 10W30 FC-W™ outboard motor oil or SAE 10W30 API service classification SJ or later
• Oil Capacity: 2.40 Imp. qt (2.70 L) with oil filter repl.
• Trim Range: -4° to +16°
• Tilt Range: 60°
• Steering Angle: 30°

Drive

• Gear Ratio: 2.07:1
• Gear Shift: F-N-R

Equipment

• Alternator: 27 amp
• Battery Charging Power: 22 amp
• Power Trim & Tilt: Standard
• Oil Pressure Alert: Standard
• Over Rev-Limiter: Standard
• Temperature Alert: Standard
• Battery Condition Alert: Standard
• Speedometer Pickup: Standard
• Variable Speed Trolling Kit: Optional
• Rudder Meter Kit: Optional
• Tilt limit Kit: Optional

Dimensions

• Overall Width: 16.4 in. / 417 mm
• Transom Height: 20.5 in. / 521 mm

Propeller

• Propeller Type: Optional

Dry Weight

• LRTC-Type: 243 lbs. / 110 kg (With propeller mounted)

Warranty

• Standard Warranty: As a testament to their quality and reliability, all Honda marine engines come with a warranty of 36 months for non-commercial use and 12 months for commercial use.
• Honda Plus Extended Warranty: Honda Plus extended warranty is now available for your marine engine. You can prolong your worry-free pleasure on specified parts and components even further. For more details, please view the Warranty section.
